Now, incorporate Digital Heads, is possible with our module M-Tower
Adaptable to any rotating machine of continuous forms, allows possibility to customize their work without a huge investment.
In collaboration with Kodak©, we propose supports for their inkjet heads prosper, along with a group of infrared drying ... all centralized in a single module fully adaptable.

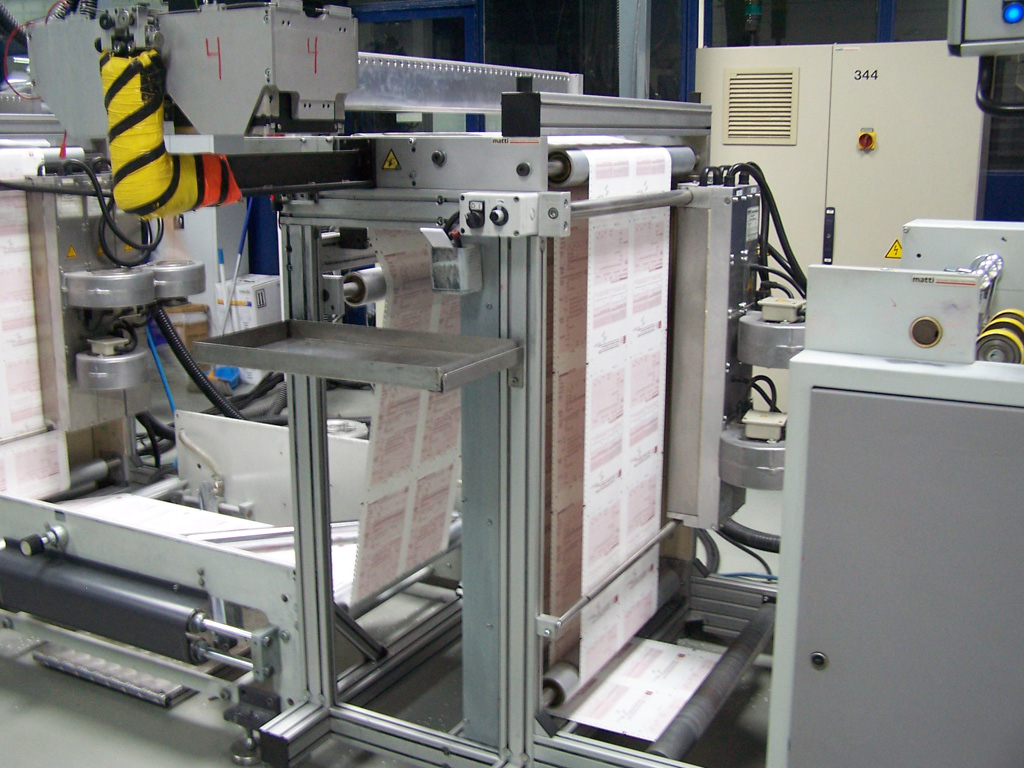

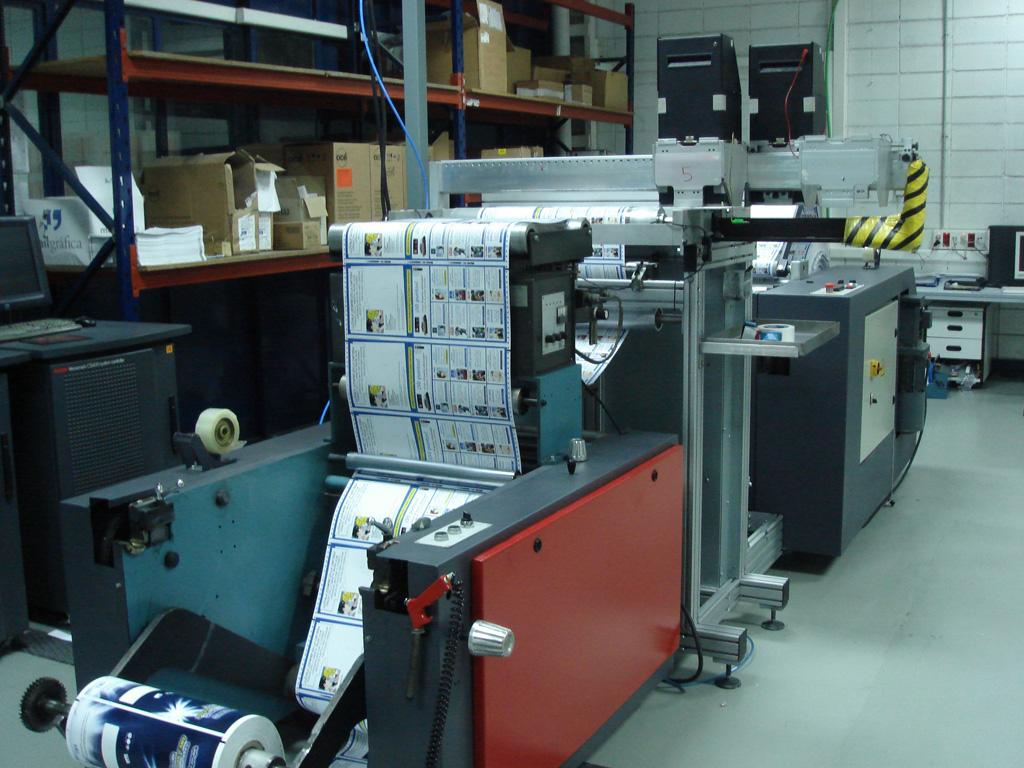

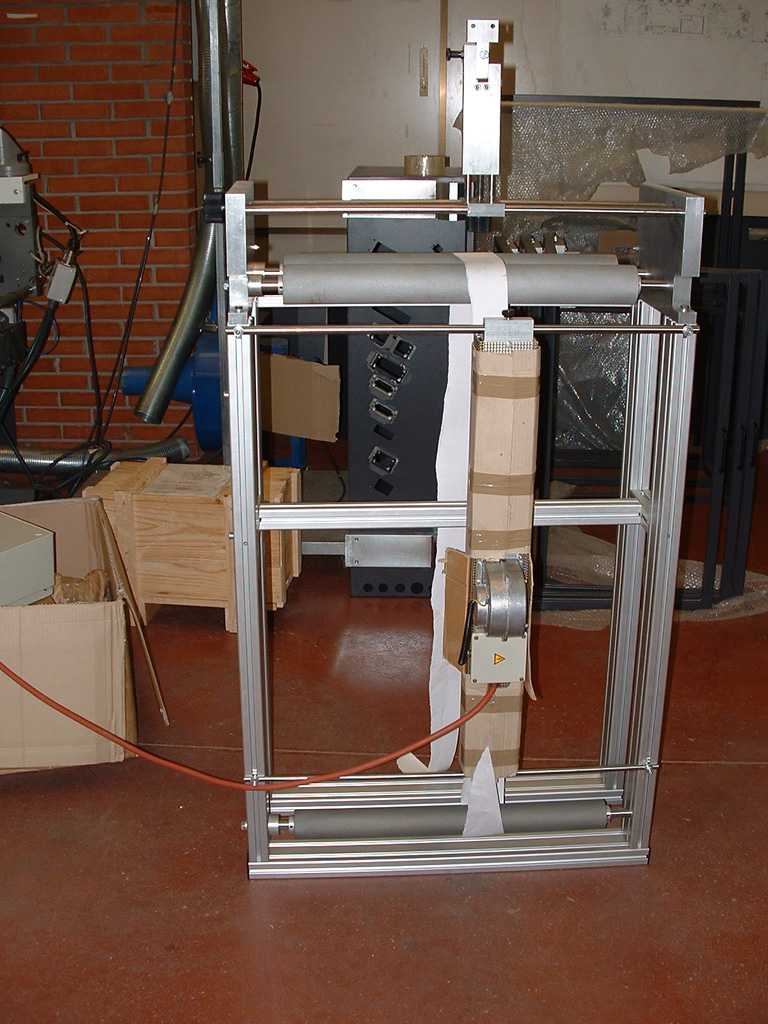

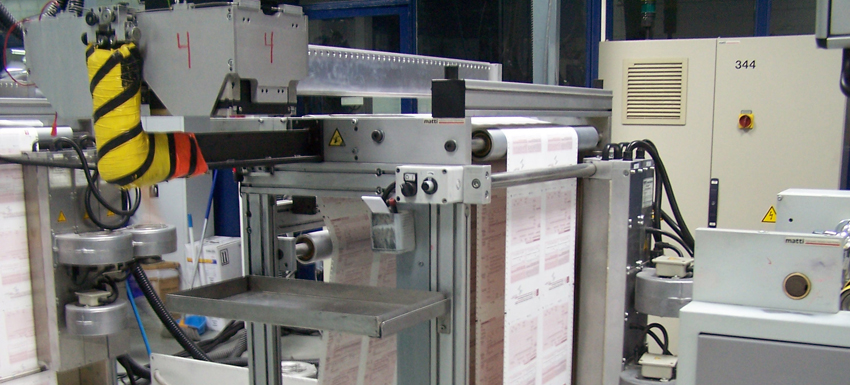

This tower is to mounting for inkjet heads with dryers, cue mark sensor and speed encoder. Here is also the possibility of creating external lines for finishing work.
Worldwide distribution of Matti-Tower (M-Tower) by our most appreciated Partner MATTI TECHNOLOGY AG.
Please check the detailed Specifications Matti Technology home page site (www.mattitech.ch).
There are more solutions we can provide, with our modules Unwinder and Rewinder.
The drilling position is doubled, is equipped with cylinders of variable size, from 11 "to 14", allowing to produce perforations on one side in position 1 and position 2 can produce perforations on the other side independently. The perforator cylinders are either horizontal magnetic type for steel plates or conventional type cutting pipe character, which are mounted in supports rapid change. Vertical perforations for continuous drilling is done in a separate position on the inlet side of the unit and can be equipped with any number of wheels drills, for drilling vertical selective recommended magnetic plates.
Each horizontal drilling is controlled separately by reading marks on the edge of the paper in a free field.
