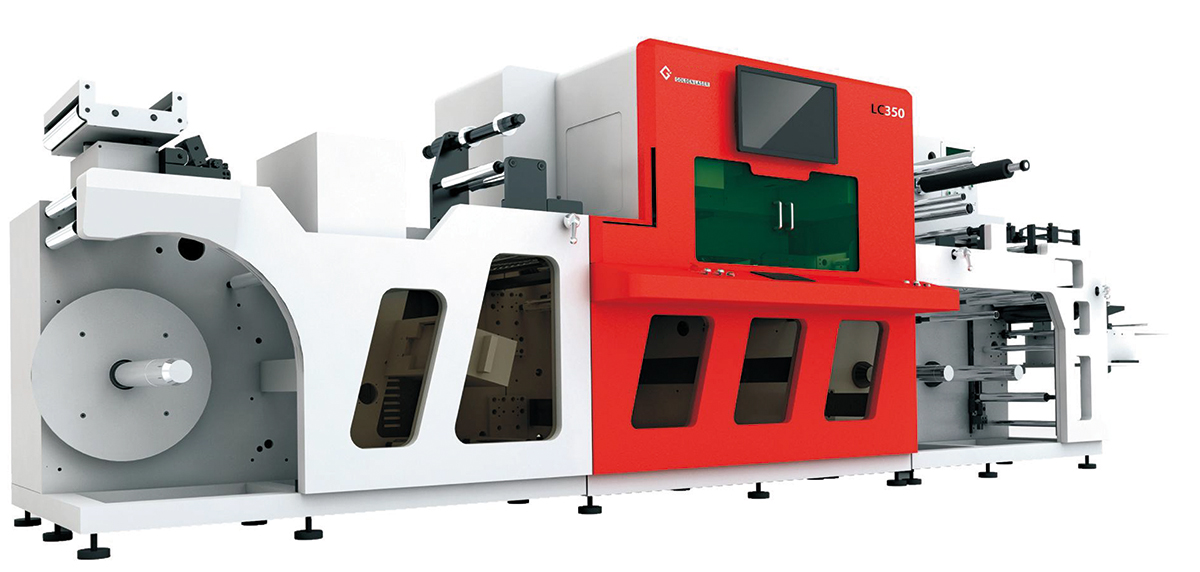

TEC-LASER LC-350

The most important

Modular Custom Design

Golden Laser’s high-speed intelligent laser die-cutting system adopts a multi-module, customized and all-in-one design concept

It can be equipped with several optional modules according to your processing needs, fully satisfying your individual customization needs.

Download the product sheet

SPECIFICATIONS

  • Maximun Width: 350mm
  • Max cutting length: Ilimitada
  • Max width of feeding: 370mm
  • Max web diameter: 750mm
  • Max web speed: 80m/min
  • Dimensions: L3700*W2000*H1820mm
  • Weight: 3500KG
  • Power supply: 380V - 50/60HZ
  • Air pressure: >0.4mpa
  • Laser power: 2 of 300W unit
  • Laser power output range: 5%-80%
  • Power stability: ±3%
  • Water chiller power: 1.2KW-3KW
  • Beam 2mrad: full-width remote measurement
  • Line speed: 6000mm./s
